How to Choose the Label Roll Core Size for Your Printer
When purchasing labels, we tend to focus more on the material, size, and manufacturing process.We often overlook the label roll core size——a seemingly insignificant detail that directly affects compatibility with printing or labeling equipment.
An improperly sized core can cause paper jams or installation issues during use. In more severe cases, it can lead to equipment wear and printing malfunctions. So, what size label core should you choose? We’ll explain this in detail below.

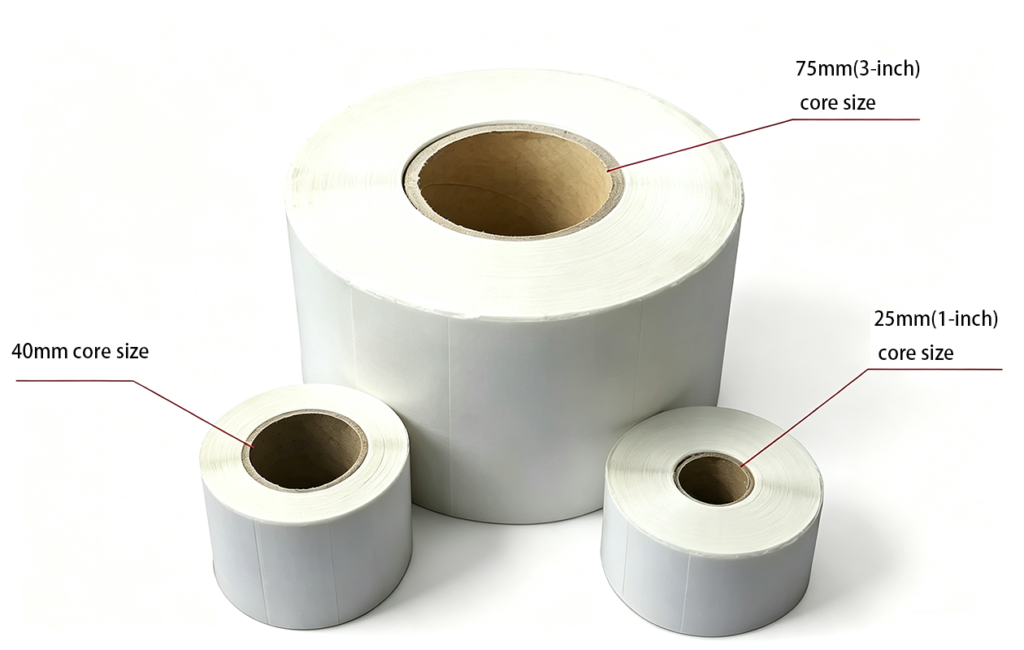

Common Label Roll Core Size on the Market
13mm Ultra-Small Core (Mini)
This is the least common core size, designed for portability and compactness, and specifically compatible with various handheld label printers and portable small thermal printers. Label rolls with this core size are small and lightweight, making them easy to carry. They are suitable for scenarios such as home organization and sorting, labeling office documents, temporary price tags in small retail stores, and marking personal items. Its advantage is that it’s extremely portable and doesn’t take up much space. The disadvantage is that each roll contains a small number of labels, so it’s not suitable for high-volume continuous printing.
25mm (1-inch) Small Core (Portable Universal Model)
The 25mm core is the standard size for portable printers and small desktop label printers, striking a balance between portability and practicality. Compared to the 13mm core, its spool is more stable, ensuring smoother paper feed and a higher label capacity per roll. It is suitable for mobile printing while working on the go, daily price tag printing in small shops, and sorting small quantities of goods in warehouses, making it one of the top choices for individual users and small businesses.
40mm Medium Core (Desktop Commercial Model)
The 40mm core is compatible with most desktop barcode printers and thermal label printers, making it a common size for commercial applications. This type of core features a highly stable spool, supports medium-width label paper, and provides a generous number of labels per roll. It is suitable for scenarios such as bulk order printing in e-commerce warehouses, product labeling in small and medium-sized factories, and bulk price tag printing in chain stores. It balances printing efficiency with device compatibility and offers outstanding value for money.
75mm (3-inch) Large Core (Industrial Bulk Model)
The 75mm core is an industrial-grade large size suitable for high-speed automatic label applicators and industrial-grade barcode printers, accommodating wide-width, large-diameter label rolls. Its key advantage is the extremely high label capacity per roll, which meets the demands of high-volume, continuous production, eliminates the need for frequent consumable replacements, and significantly improves production efficiency. It is suitable for scenarios requiring high-frequency, high-volume labeling and printing, such as large factories, logistics sorting centers, and large-scale supermarkets.
| Core Size | Category & Model | Compatible Equipment | Applications & Key Features |
|---|---|---|---|
|
13mm Mini
Ultra-Small Core
|
Compact Portable | Handheld label printers, portable thermal printers | |
|
25mm (1 Inch)
Small Core
|
Portable Universal | Portable printers, small desktop label printers | |
|
40mm
Medium Core
|
Desktop Commercial | Standard desktop barcode printers, thermal transfer printers | |
|
75mm / 76mm (3 Inch)
Large Core
|
Industrial Bulk | Industrial-grade barcode printers, automatic label applicators |
How to Choose the Right Label Roll Core Size
These devices are designed to be lightweight and portable, and are commonly used for home organization, office categorization, price tags in small retail stores, and on-the-go receipt printing. They typically support 13mm and 25mm core sizes. The 13mm ultra-small core is compact, making it ideal for small handheld printers, and its consumables take up minimal space; The 25mm small core offers greater versatility and is the mainstream choice for portable thermal printers, providing smooth paper feed and easy portability and replacement.
Suitable for fixed locations such as office desks and small warehouses, with moderate print volumes. The primary compatible core size is 40 mm—a medium-sized core that balances stability and convenience. It is compatible with most desktop thermal and thermal transfer label printers; once installed, it remains secure and ensures higher print accuracy.
Primarily used on production lines and in bulk labeling scenarios, these systems handle high print volumes and require continuous operation. They place higher demands on the core’s load-bearing capacity and stability, and are typically compatible with 76mm (3-inch) large cores. Large cores have a high load-bearing capacity, can hold more labels, and reduce the frequency of core changes. They meet the high-speed operational demands of industrial equipment and prevent frequent downtime for material changes caused by cores that are too small.
Before selecting a core, be sure to consult the equipment manual to confirm the supported inner diameter range for cores. This will prevent issues such as cores being too large to install or too small, resulting in looseness or slippage. If the manual is missing, measure the diameter of the equipment’s core mounting shaft and use this as the primary basis for size matching.
Combining Use Cases and Tag Parameters
1. Label Usage and Frequency of Use
For occasional, low-volume use—such as household sorting or small offices—select smaller core sizes (13 mm, 25 mm). Smaller-capacity label rolls help prevent a buildup of unused supplies. For mass production or high-frequency labeling scenarios—such as e-commerce shipping, food and personal care product packaging, and warehouse inventory counts—prioritize larger core sizes (76 mm). These hold more labels, reduce the frequency of roll changes, improve operational efficiency, and lower labor costs associated with frequent material changes.
2. Label Specifications and Materials
Label width and label thickness will determine the core size. For very wide labels (over 100mm wide) a medium to large core size (40mm, 76mm) will be required to stop problems with labels not winding up straight or folding back in on themselves. Thick labels (such as waterproof or oil-resistant synthetic paper or PET materials) are heavier and require large-diameter cores with high load-bearing capacity to prevent core deformation or breakage. Thin labels (such as standard thermal paper) can use smaller-diameter cores to balance portability and practicality.
3. Storage and Portability Requirements
If labels need to be carried and used on the go—such as by field staff or street vendors—prioritize small core sizes (13 mm or 25 mm), which are compact and easy to store and carry. If labels are stored at a fixed location where portability is not a concern, choose medium or large core sizes based on your equipment and usage volume for greater stability.
FAQ
What are the most common label roll core sizes?
The most common label roll core sizes are 13mm (mini), 25mm (1 inch), 40mm (medium), and 76mm/75mm (3 inch).
How do I know what label core size my printer requires?
Check your printer’s user manual or specifications sheet to find the supported inner core diameter. If you do not have access to the manual, measure the outer diameter of the printer’s core mounting spindle or shaft where the label roll sits.
Why is choosing the correct core size so important?
Choosing the wrong core size can lead to serious operational issues, such as label rolls being unable to fit onto the spindle or slipping during rotation. Severe misfits can cause paper jams, improper alignment, uneven feeding, and long-term equipment wear or printing malfunctions.
Which core size should I choose for heavy or wide label materials?
For heavy, thick materials (like synthetic paper, PET, or oil-resistant films) or wide label rolls exceeding 100mm, choose medium to large core sizes (40mm or 76mm).
